Experience Level required: Intermediate

Objectives

In this report, we will analyze CyberGate, a Delphi malware, to determine its function and capabilities.

Overview

According to Subex Secure, CyberGate is a Remote Access Trojan (RAT) that allows an attacker to gain unauthorized access to the victim’s system. Attackers can remotely connect to the compromised system from anywhere around the world. The Malware author generally uses this program to steal private information like passwords, files, etc. It might also be used to install malicious software on the compromised systems.

Basic Analysis

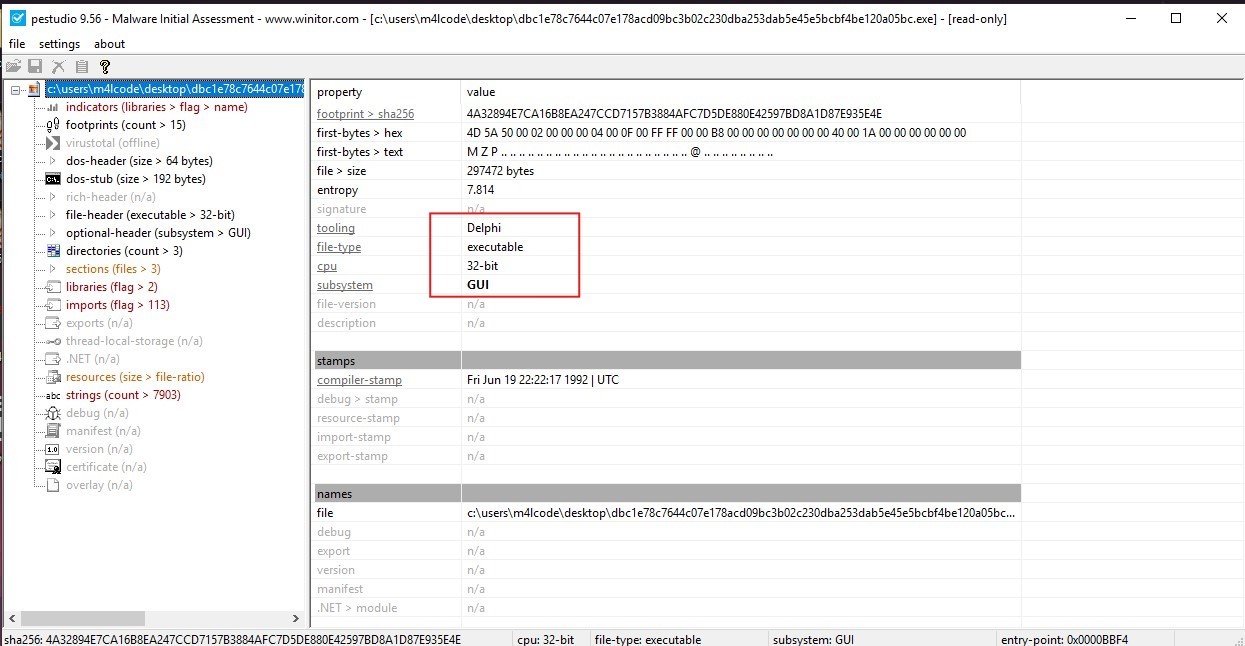

Let’s get some information about this sample. I’ll use pestudio

We have some indicators that this sample is packed using UPX Packer, as shown in the figure above, UPX is a file compressor. It reduces the file size of programs and DLLs by around 50%-70%, malware authors use that packer to obfuscate and compress their malicious code.

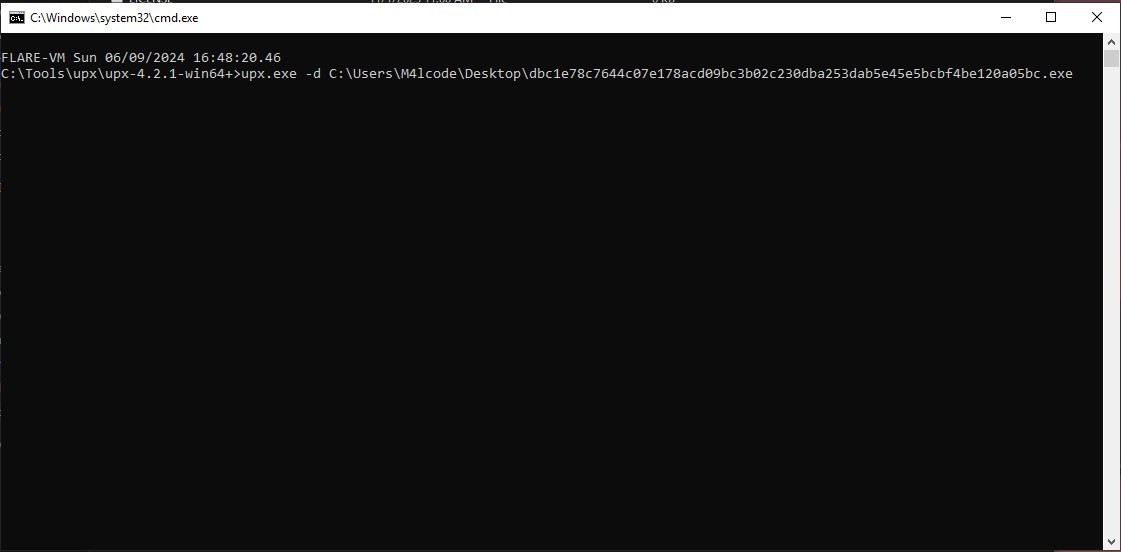

We can unpack this sample by using UPX tool as seen below

Note: The packed file will be replaced by the unpacked one

The malware is 32bit and it is written in Delphi, as you can see in the image above.

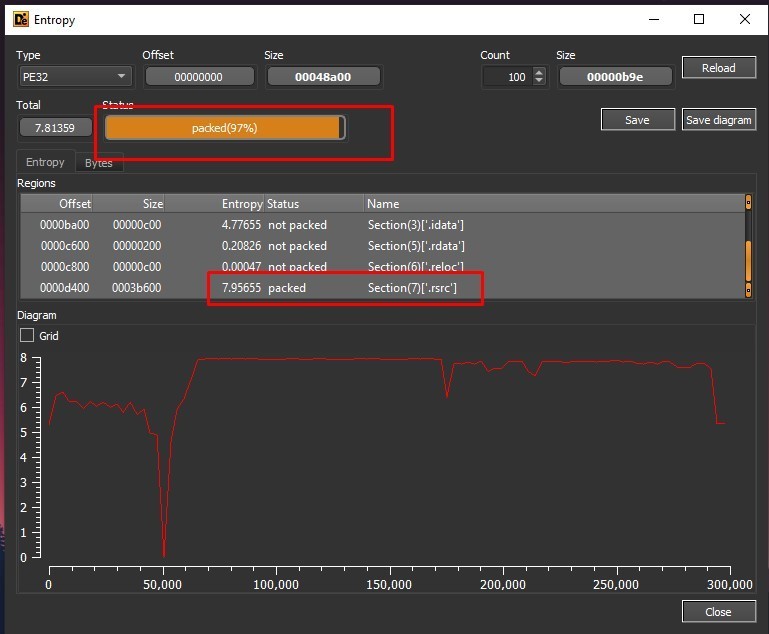

Let’s see if it’s packed or not. I’ll use DIE

The sample is packed, specifically .rsrc section

Before doing the advanced analysis we need to see the sample behavior in a sandbox, I’ll use tria.ge.

The processes created by CyberGate:

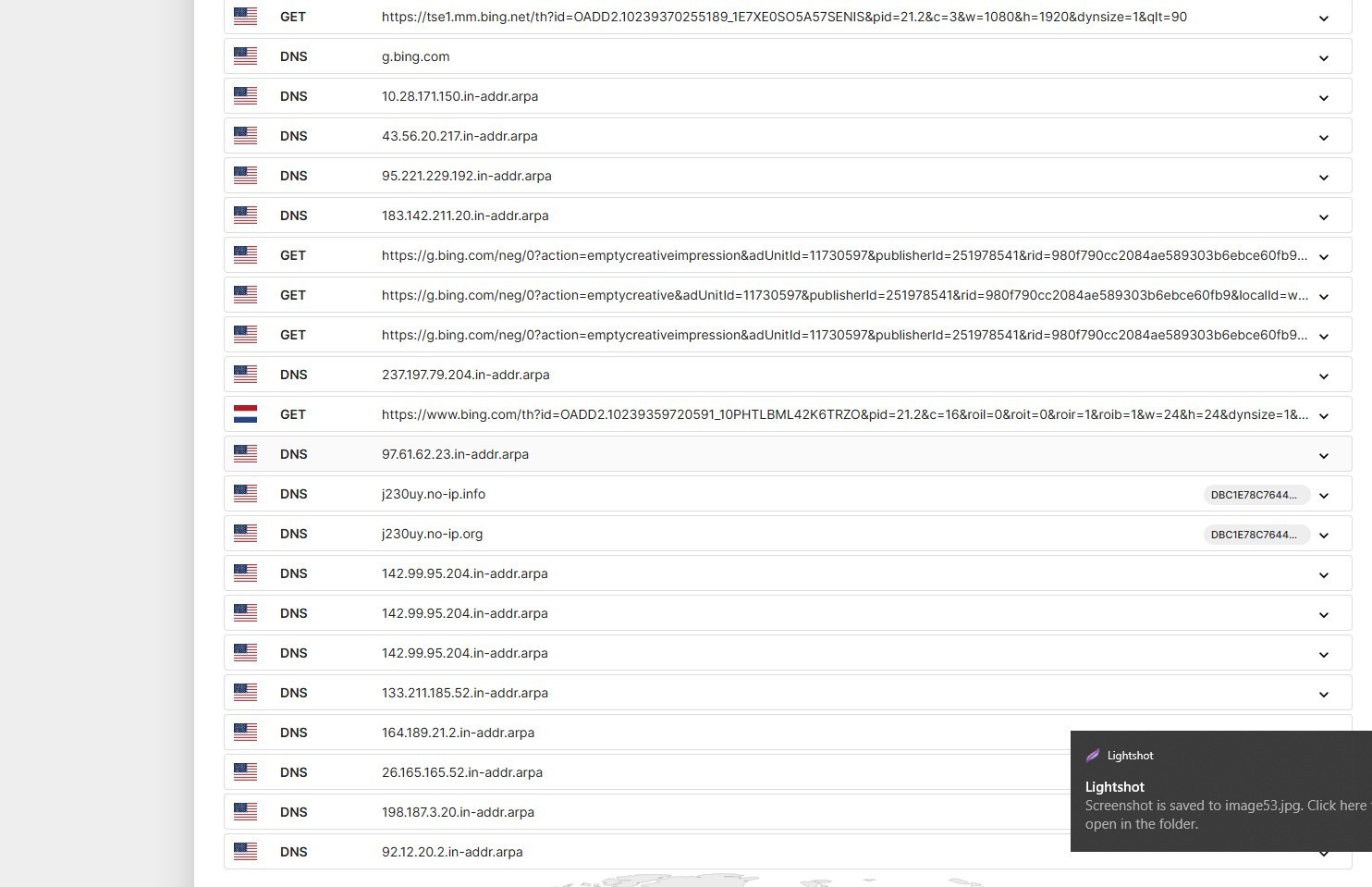

CyberGate tried to communicate with these C2 servers in WIN10 Sandbox

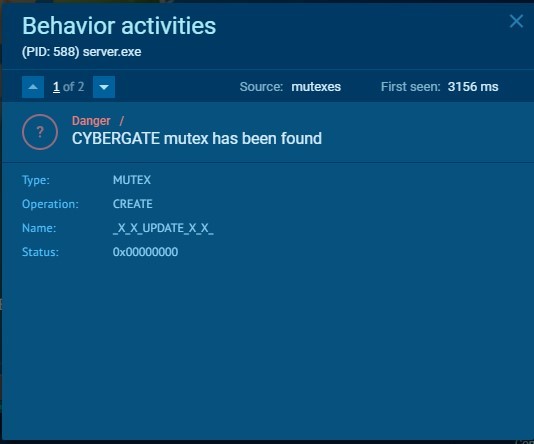

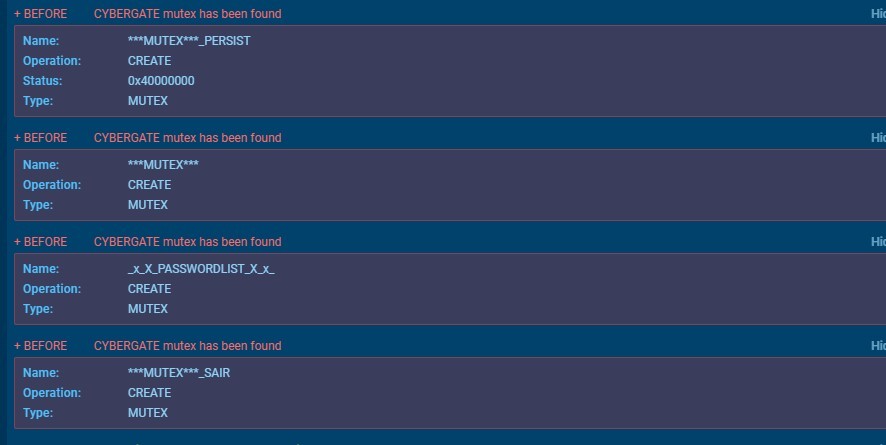

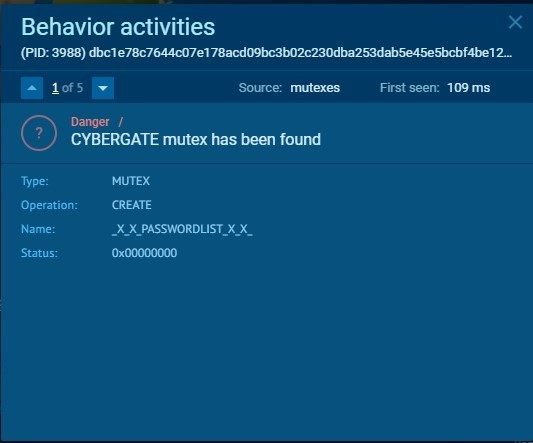

CyberGate creates mutexes to avoid running multiple instances of it at the same time.

Mutexes:

Dropped files

CyberGate dropped some files, Let’s take a look on them

UuU.uUu

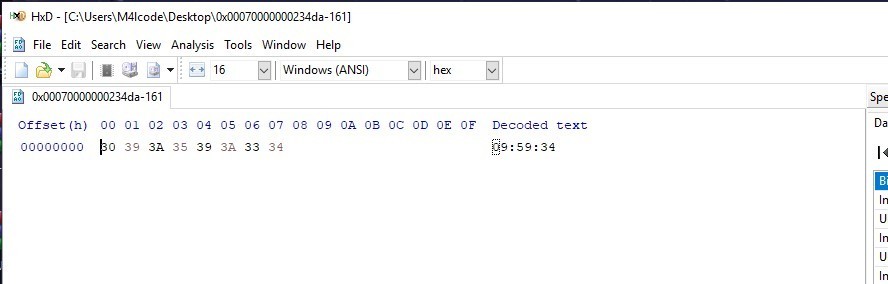

This file Contains only a time value

09:59:34

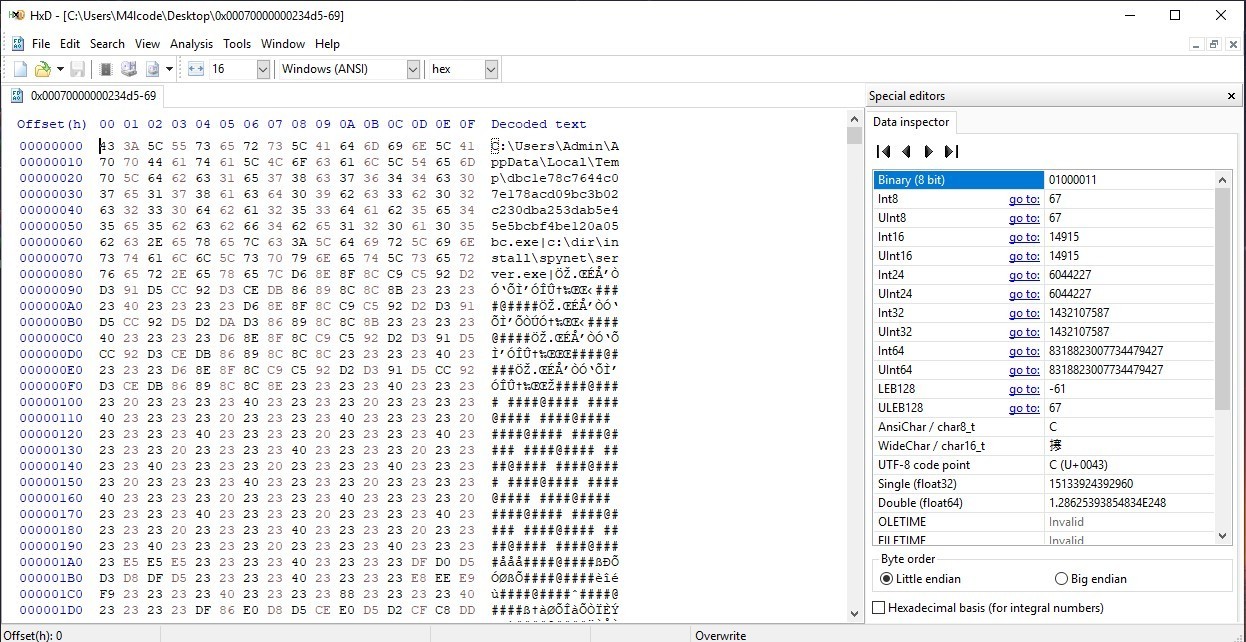

XX–XX–XX.txt

Contains two paths

in the first 88 byte, after that there is dump bytes

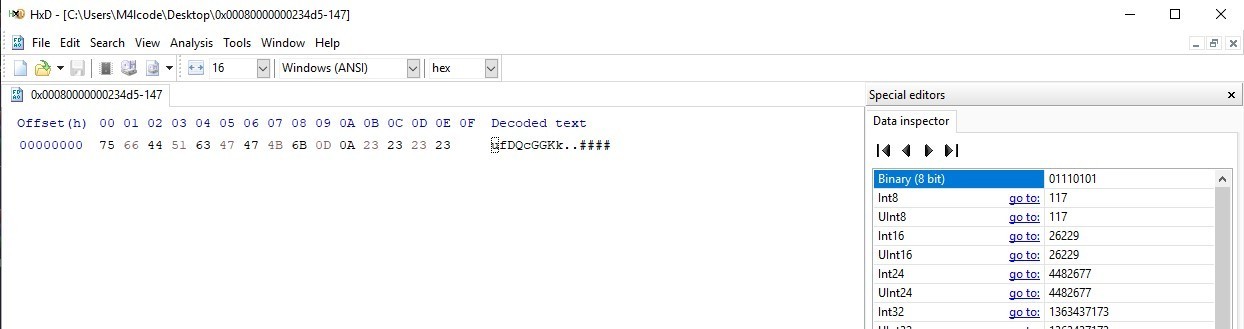

logs.dat

This file contains 9 bytes with random letters, maybe it is a decrypted string and the malware will use it later with the strings in the two other files

server.exe

This is the process that the malware injected malicious code in, we will take a look at it later.

Let’s take a fast look at the code of the sample before unpacking it

Advanced Analysis

1st Stage

Let’s open the sample in IDA

we need to do some changes in IDA options

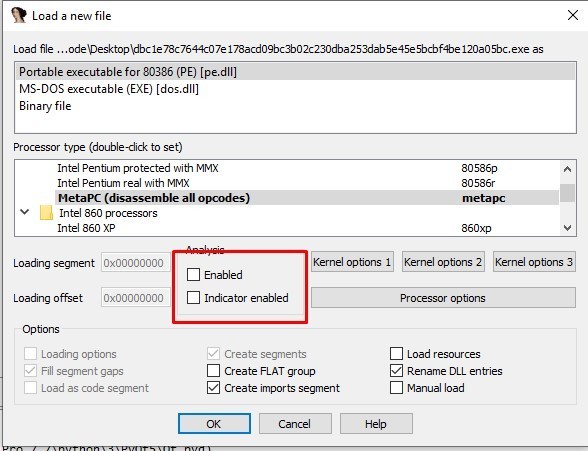

1- Disable the analysis

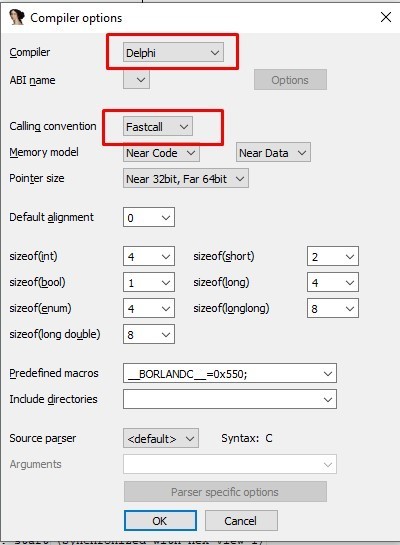

2- in options » compiler, select the following options

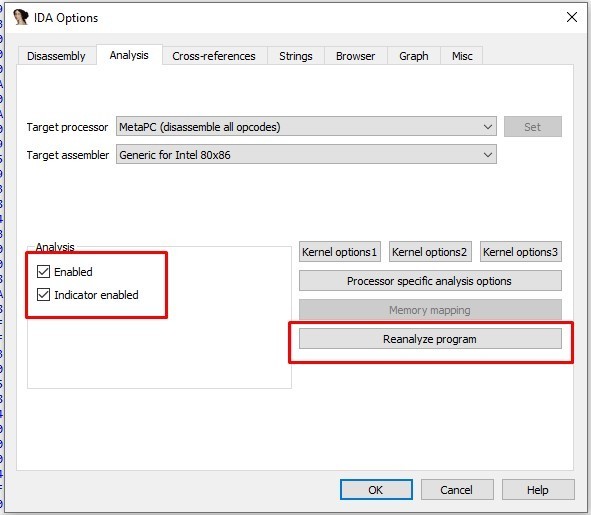

3- in options » general » analysis, select the following options

Now we can analyze this sample

Creating and Checking Mutexes

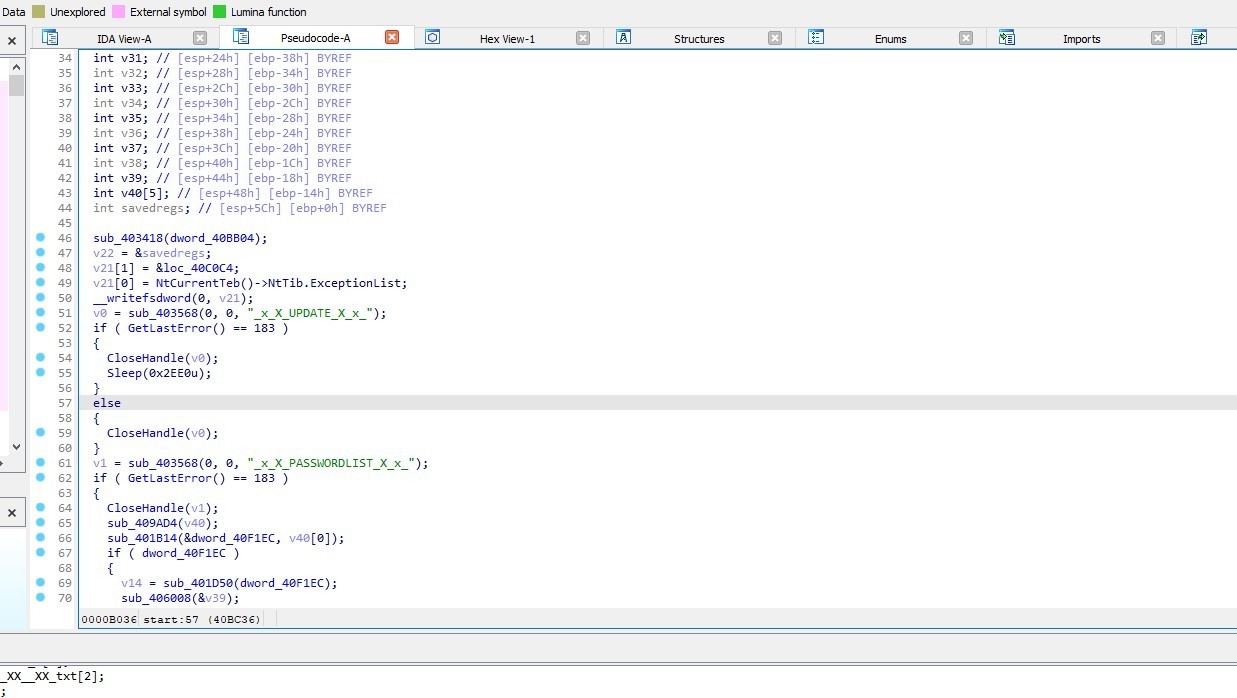

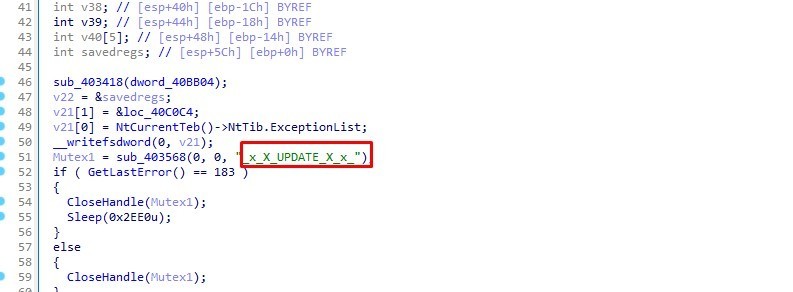

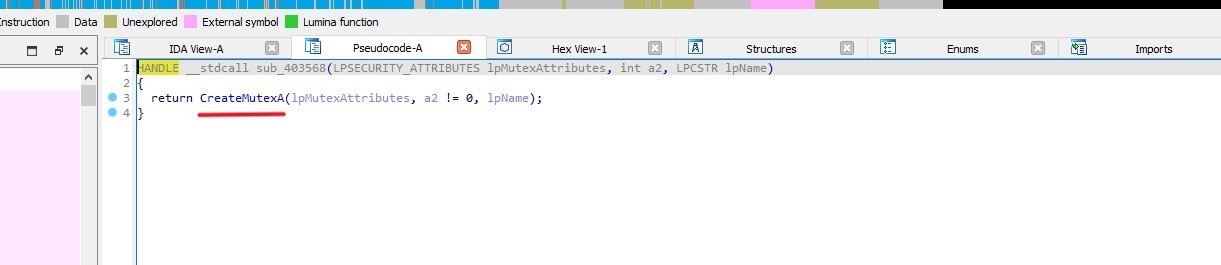

sub_403568 function creates a mutex using CreateMutexA API

MUTEX: _x_X_UPDATE_X_x_

GetLastError() == 183: Checks if the mutex already exists.

If it does (error code 183), it closes the mutex handle and sleeps for 12 seconds

If it doesn’t, it closes the mutex handle.

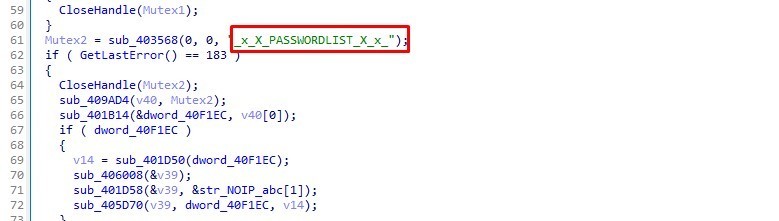

Next, sub_403568 creates another mutex

MUTEX: _x_X_PASSWORDLIST_X_x_

if the mutex already exists it closes the handle and go to sub_409AD4

In the most cases this mutex will not exists, so the malware will jump to 0x0040BFA0 address

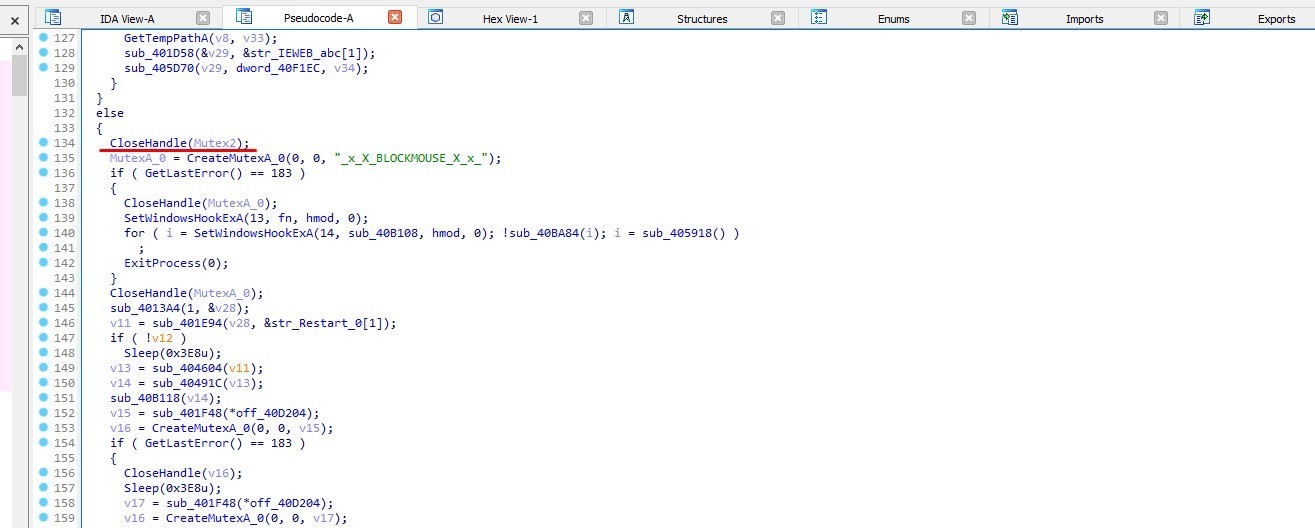

The malware will closes the handle and creates another mutex

MUTEX: _x_X_BLOCKMOUSE_X_x_

Process Injection

In process injection technique, the malware attempts to open a handle of a process either created or already existing in the system’s memory.

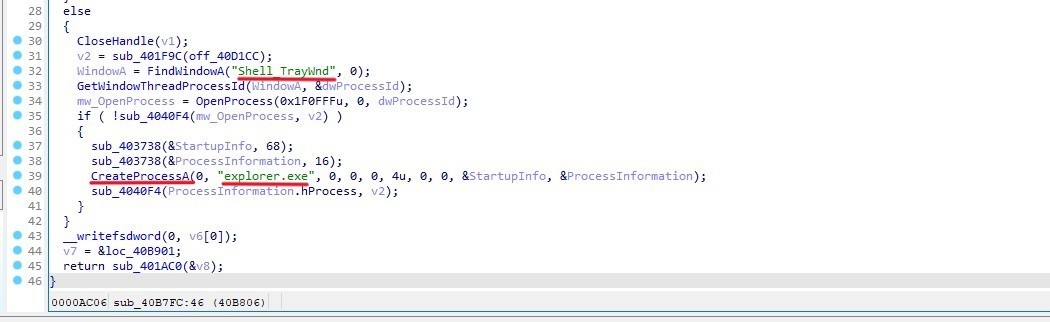

In sub_40B7FC CyberGate tries to find a specific window named (Shell_TrayWnd) to retrieve its process ID, and opens a handle to that process. But if it’s not found it tries to create a new process named (explorer.exe), then call sub_4040F4 with ProcessInformation, hProcess as parameters

After allocating memory within the created or existing process, the malware fills this memory with the code intended for injection, which contains the malicious instructions.

And that happens in sub_4040F4

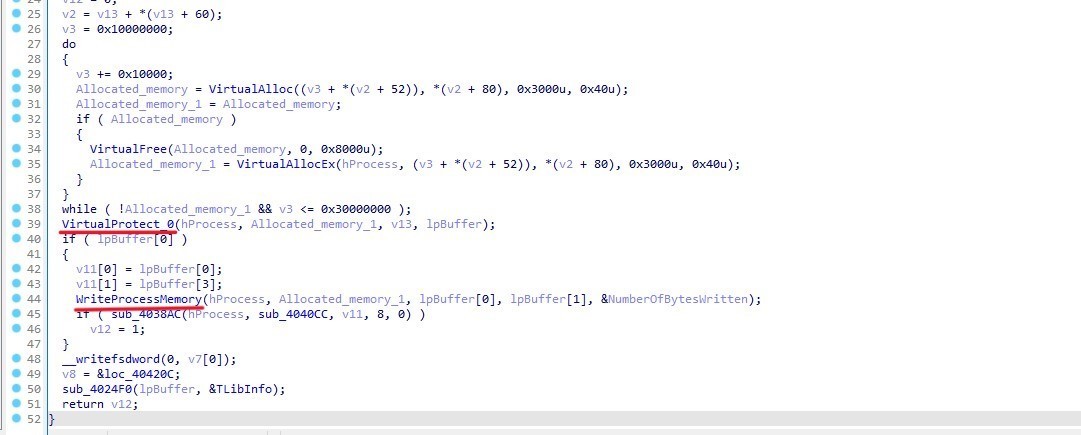

The function has loop attempts to allocate virtual memory by using VirtualAlloc, then tries to allocate memory in the process using VirtualAllocEx. This loop continues until it successfully allocates memory (v5) or v3 exceeds 0x30000000 bytes.

Then it applies protection attributes to the allocated memory by using VirtualProtect

Then it Uses WriteProcessMemory to write data to the allocated memory in the target process.

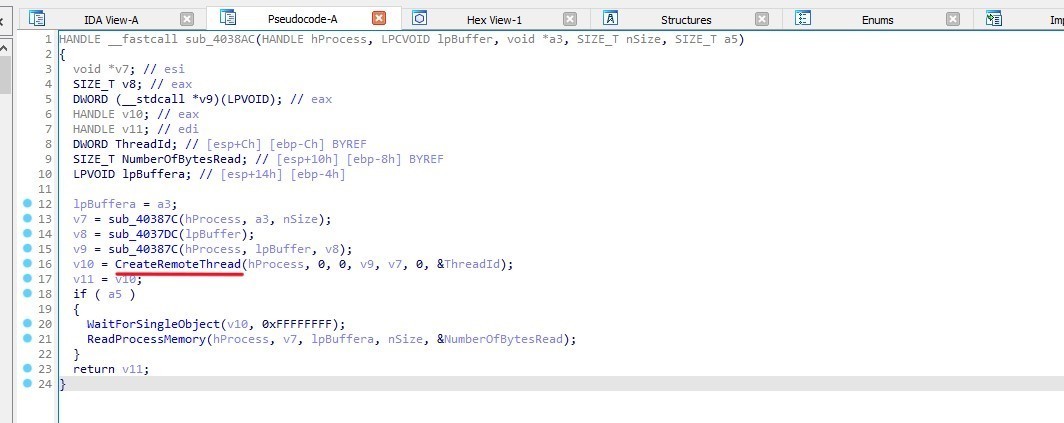

After that the malware executes the injected code by using CreateRemoteThread in sub_4038AC

Writing files

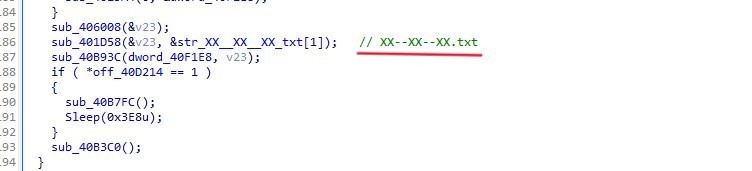

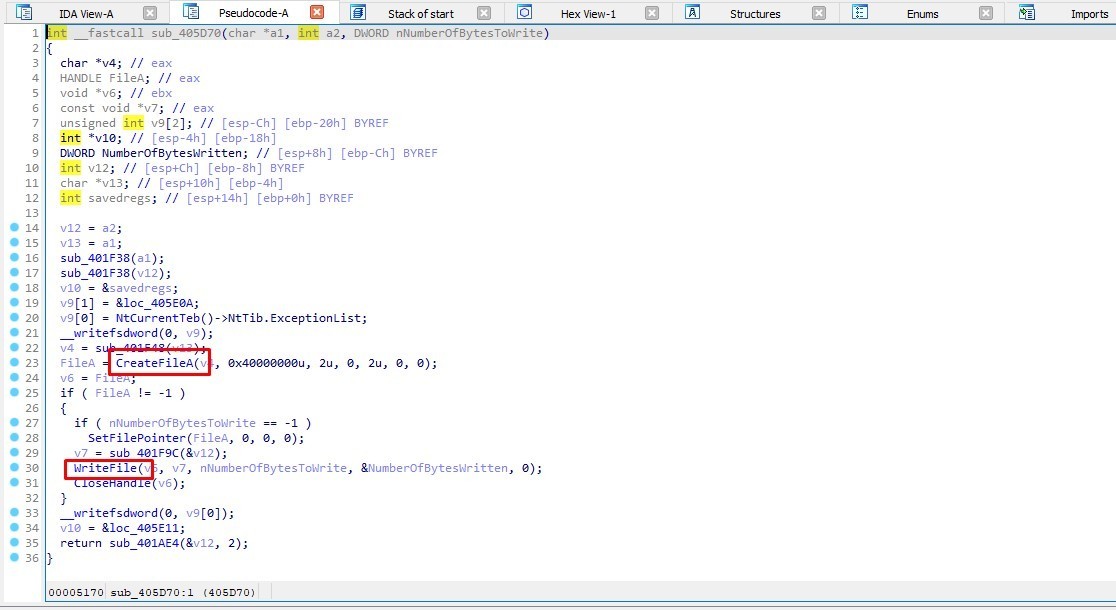

The function sub_405D70 in sub_40B93C, creates and writes a file named XX–XX–XX.txt (which we took a look on it before) by using CreateFileA and WriteFile APIs

Now that’s enough let’s unpack the sample using unpacme, to make the process faster and get directly to the main unpacked sample.

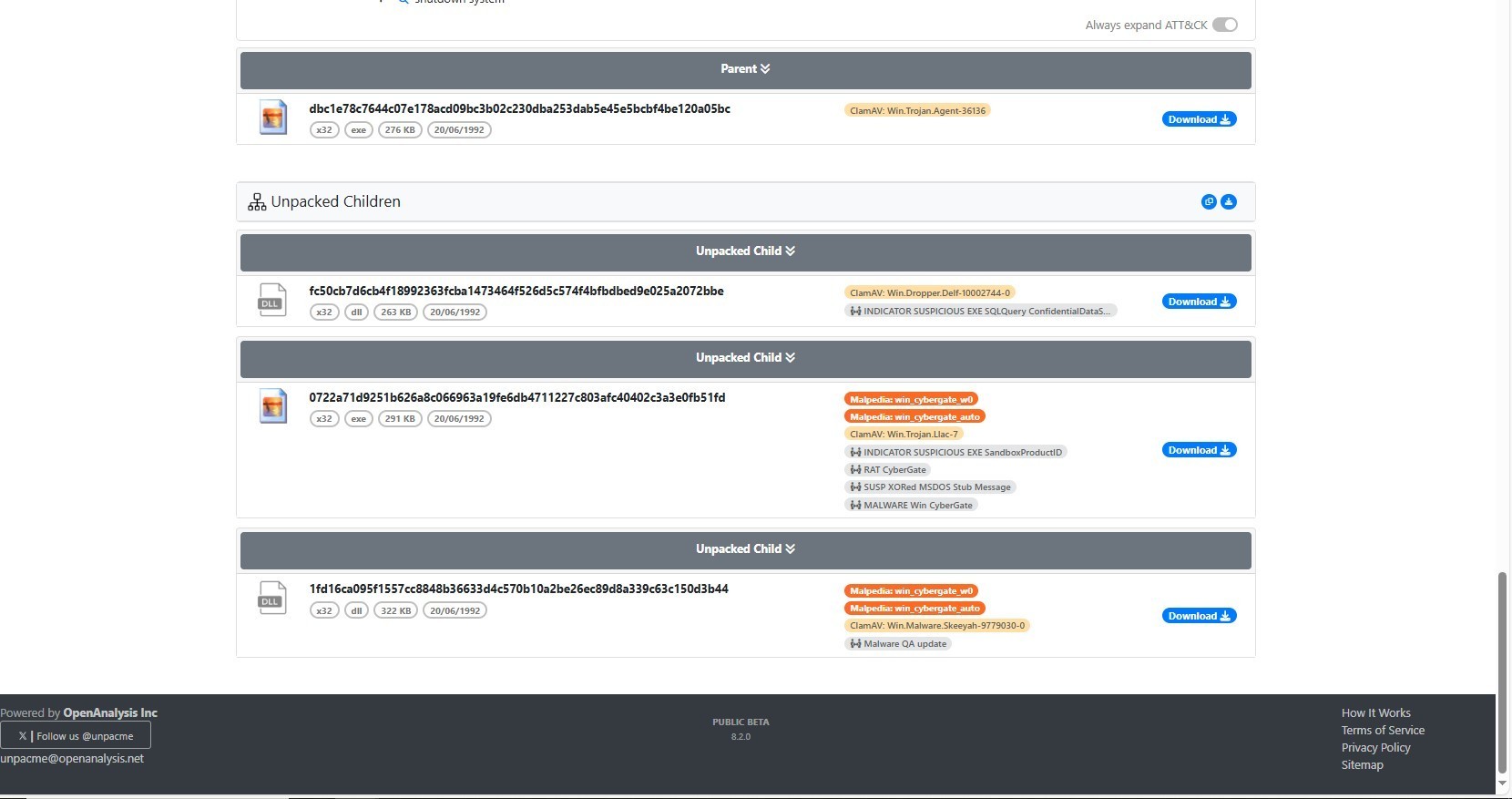

unpacme results

1st Sample

The sample is a dll written in delphi, I’ll open in in IDA and I’ll do the same thing I did for the parent sample

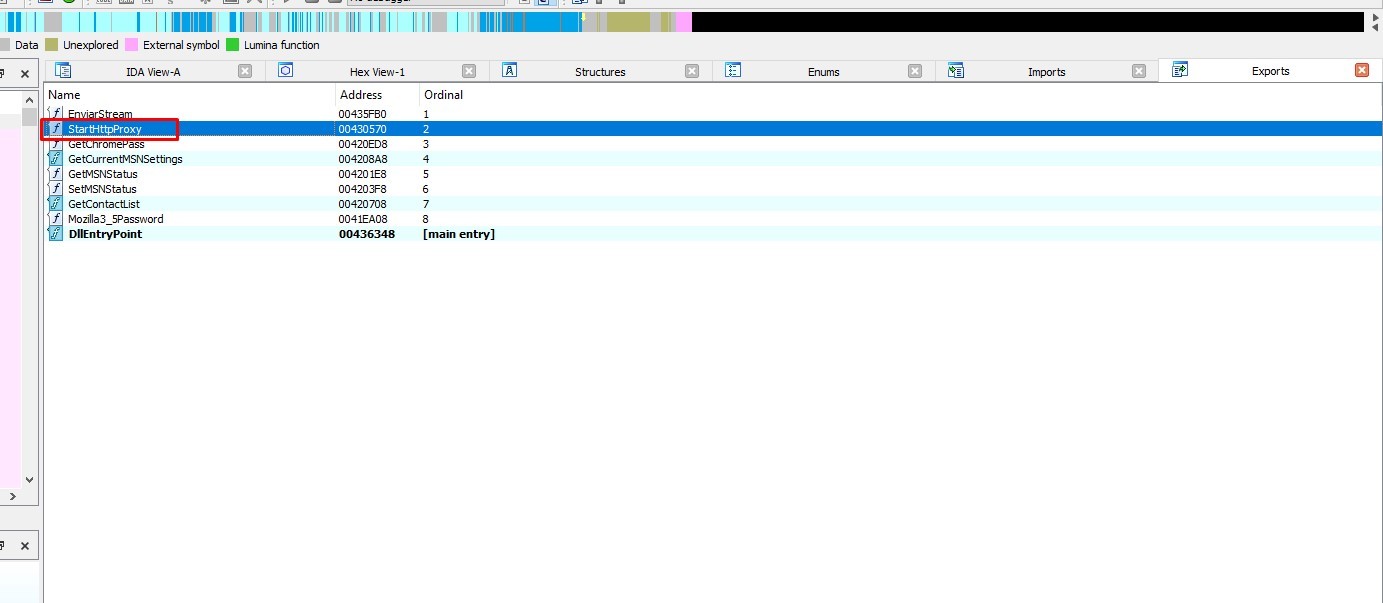

The dll entry point doesn’t have anything important, so let’s start from StartHttpProxy export

Firewall Evasion

• In sub_4302E4 the malware set Root Key to HKEY_LOCAL_MACHINE and attempts to open a series of nested registry keys under HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SharedAccess\Parameters\FirewallPolicy\StandardProfile\AuthorizedApplications\List . It will created if it does not exist

• Then concatenates three strings (v2, “:*:Enabled:”, and “Windows Firewall Update”) into v7

• and finally Writes the concatenated string v7 to the registry above, using System__AnsiString as the value name.

• “Windows Firewall Update” application has been added to the list of authorized applications. The “*:Enabled:” part typically means that all ports and protocols are enabled for this application, potentially allowing it to communicate freely through the firewall.

Thats mean that the malware maybe run with name “Windows Firewall Update” to evade firewall

Creating Mutex

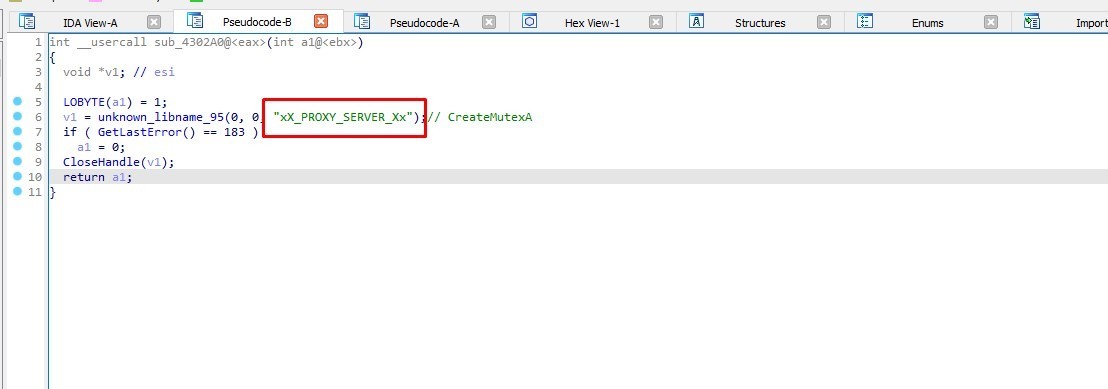

Then the malware creates a mutex

MUTEX: xX_PROXY_SERVER_Xx

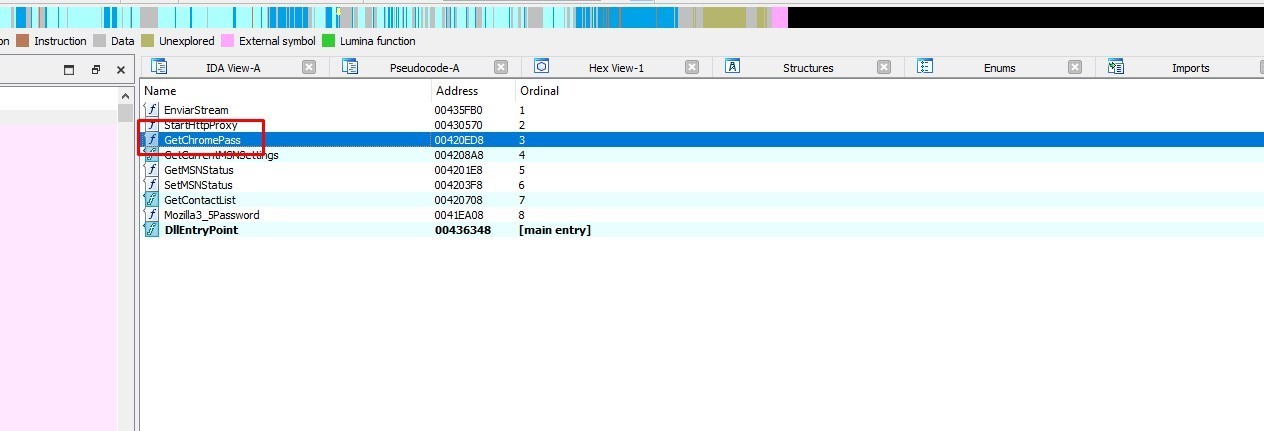

Let’s go to GetChromePass export

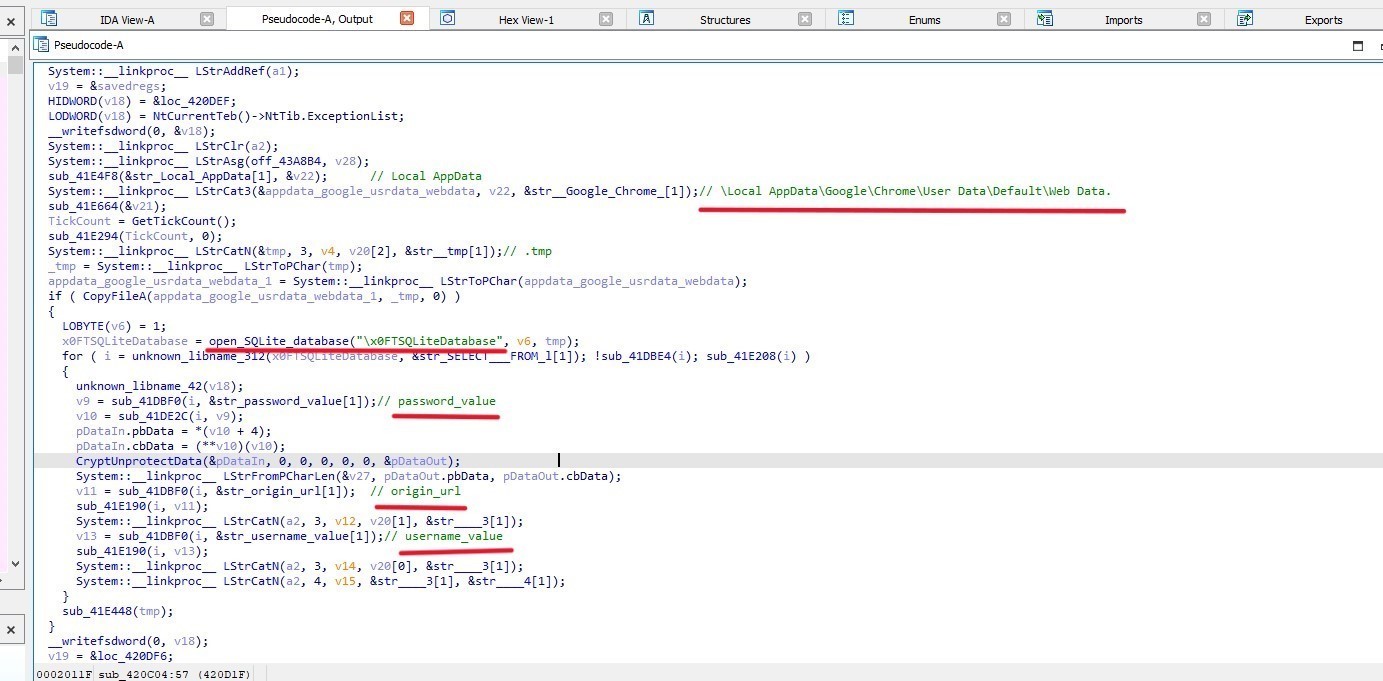

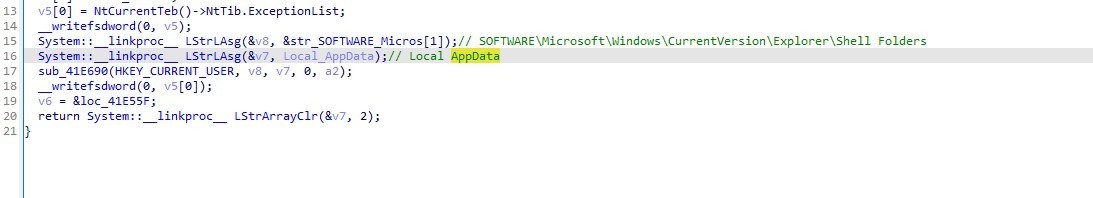

In sub_420C04 the malware assigns the string “SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Shell Folders” to v8 and assigns the string Local AppData to v7.

Then it:

• retrieves a specific value from the Windows Registry under a given key (Local AppData) registry (SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Shell Folders)

• Copies a file from “\Local AppData\Google\Chrome\User Data\Default\Web Data” to TMP folder

• Opens an SQLite database named “\x0FTSQLiteDatabase”

• Loops through Database Query Results then Retrieves and processes the password value, username_value, origin_url

• Decrypts data (pDataIn) using CryptUnprotectData and stores it in pDataOut

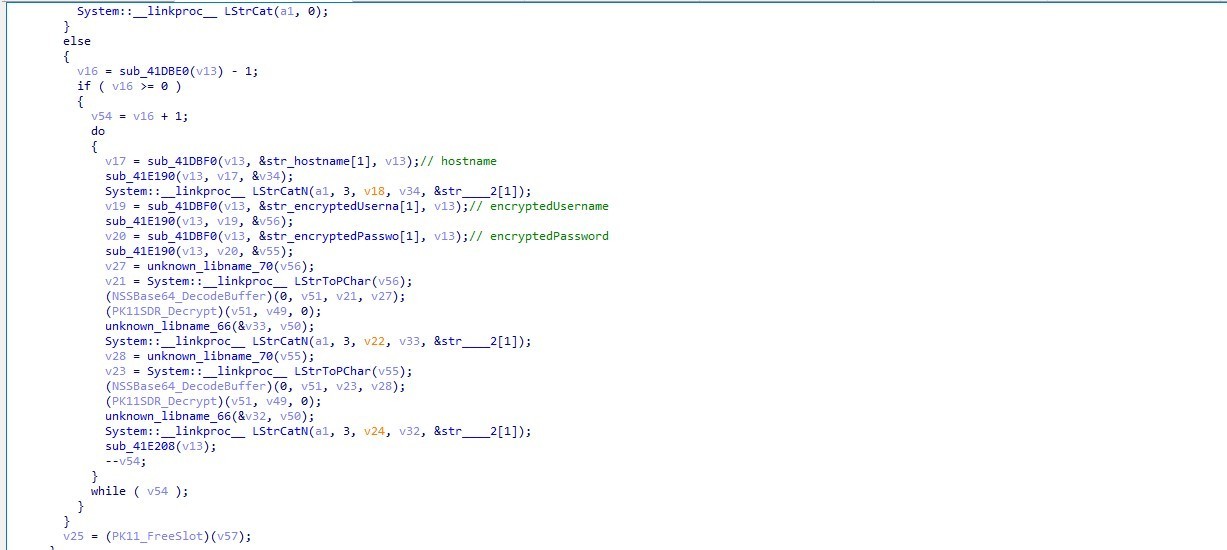

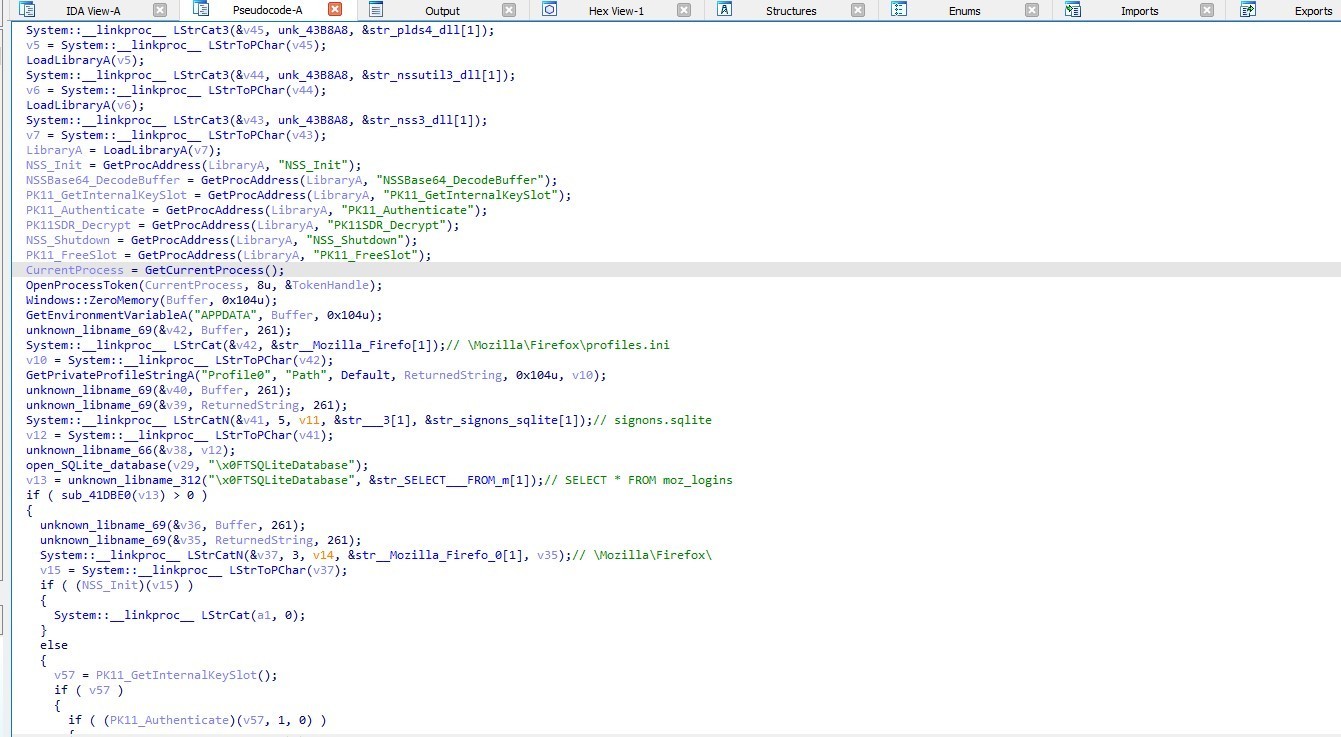

In Mozilla3_5Password export, the malware gets Mozilla’s password

2nd Sample

Let’s go to the second sample

It is the process that the malware injected malicious code in it which named server.exe

So it’s just the parent sample but with removing upx layer

Anyway let’s go to the last sample

3rd Sample

Creating 1st Mutex

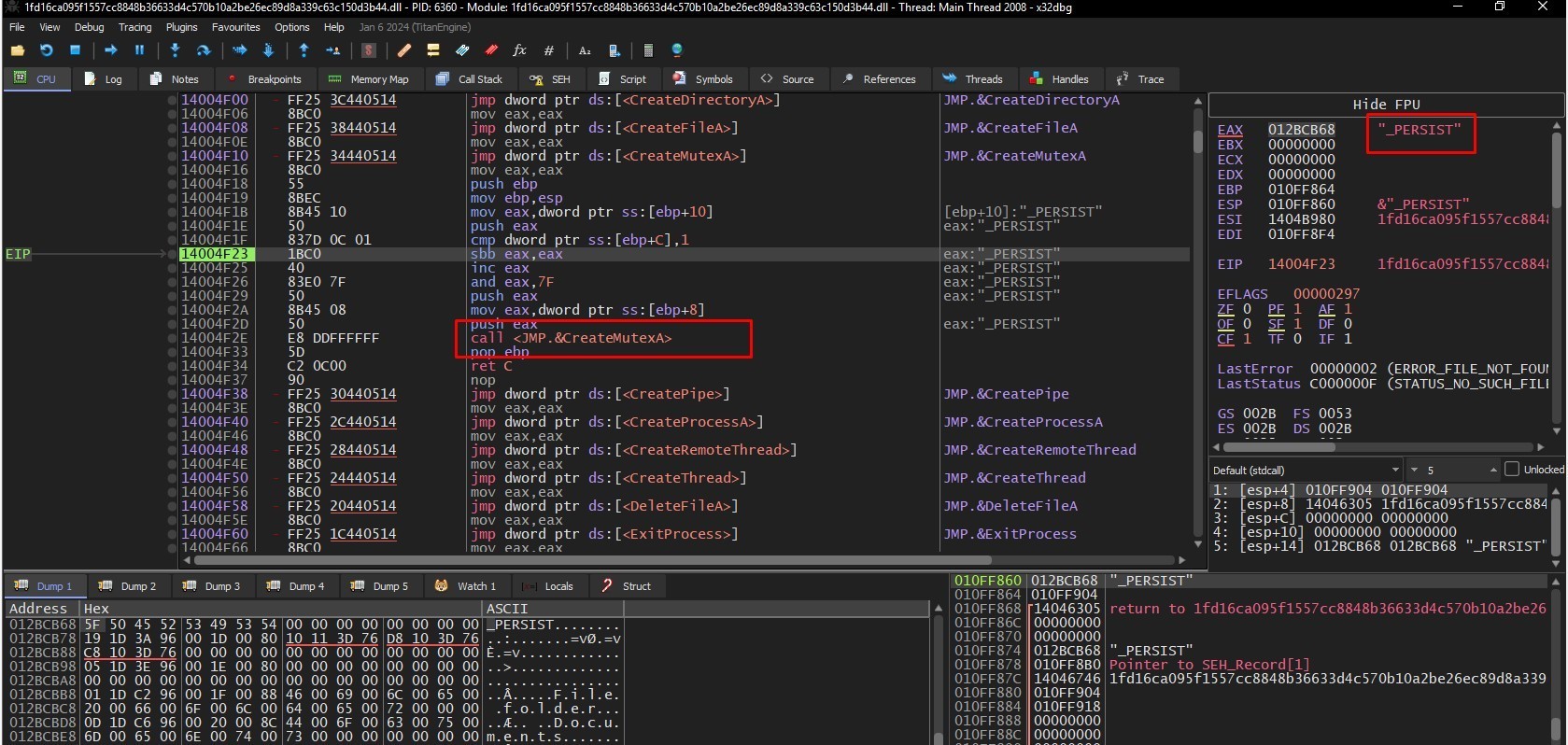

First it creates mutex

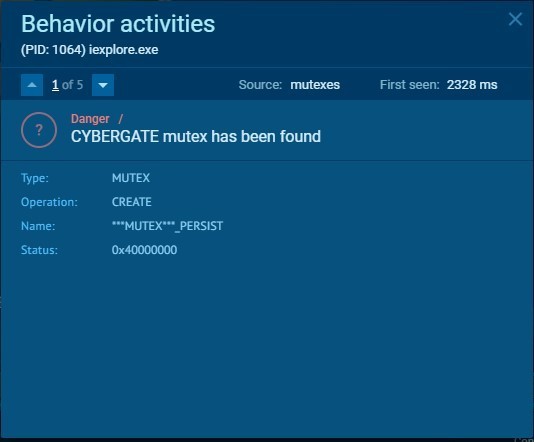

MUTEX: ***MUTEX***_PERSIST

Achieving PERSISTENCE

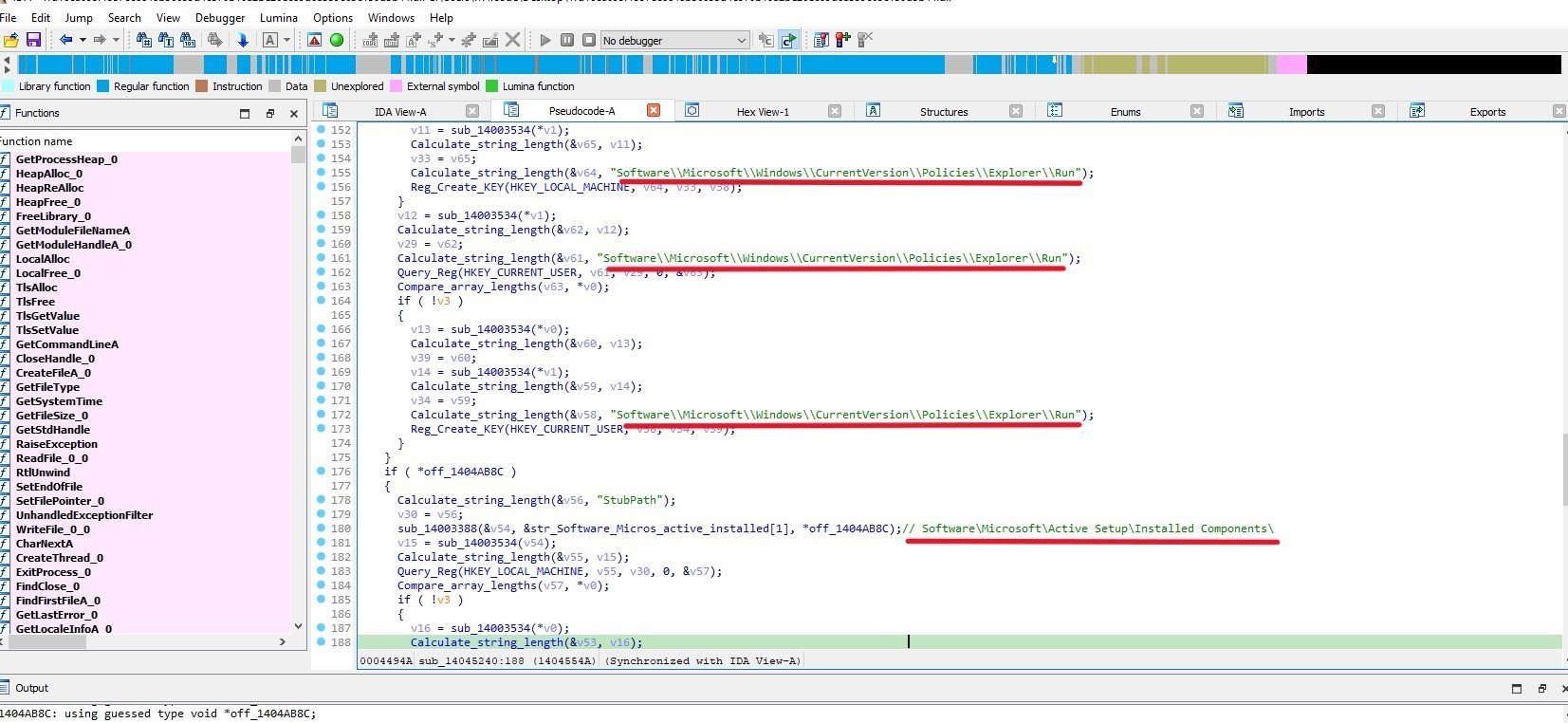

In sub_14045240

The malware creates and set these registry keys

Creating 2nd Mutex

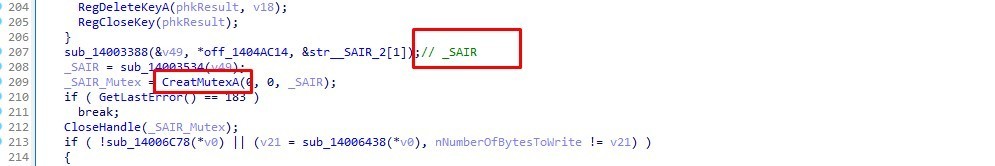

Then It creates another mutex

MUTEX: ***MUTEX***_SAIR

Process Injection

CyberGate creates thread

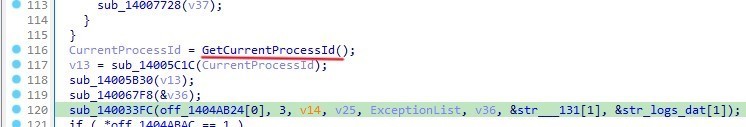

Get the id of process

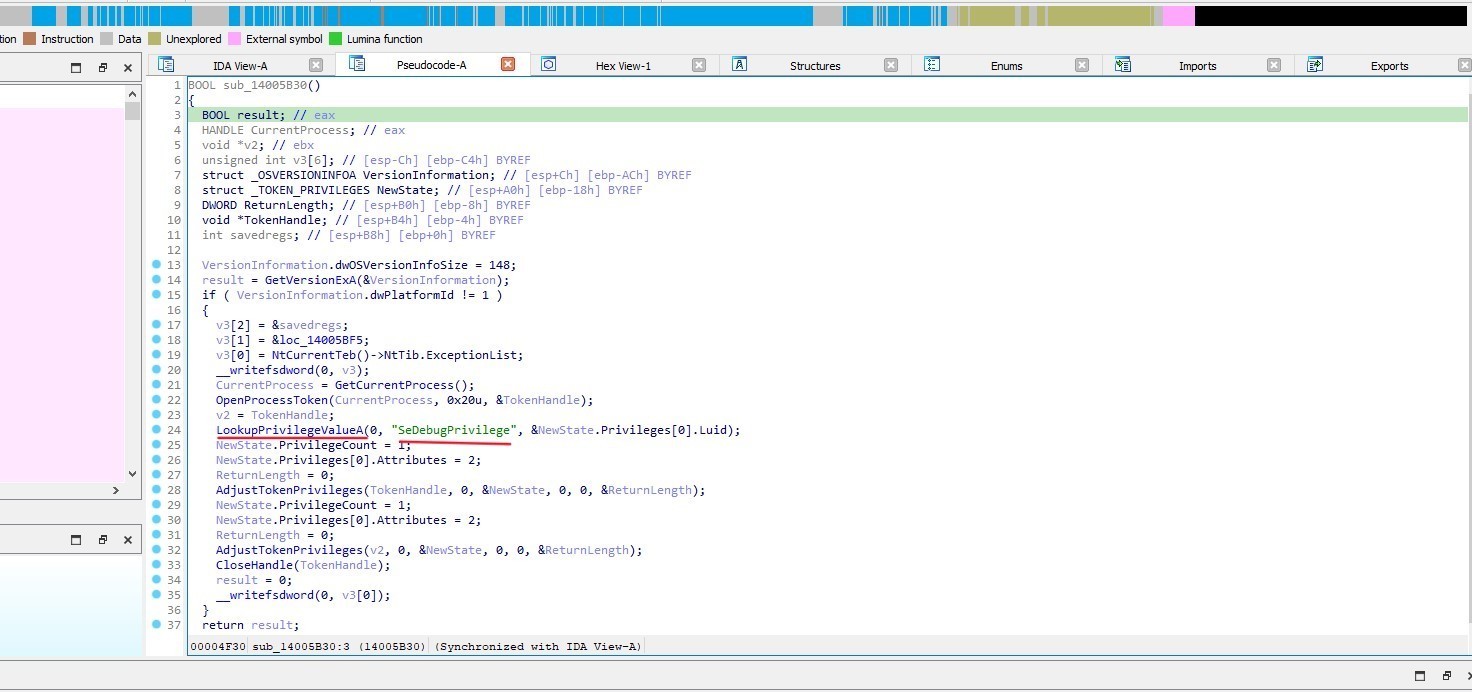

Then it uses LookupPrivilegeValueA, “SeDebugPrivilege”

malware uses SeDebugPrivilege to get access to debug and adjust the memory of processes owned by any user in the system

Get local Time

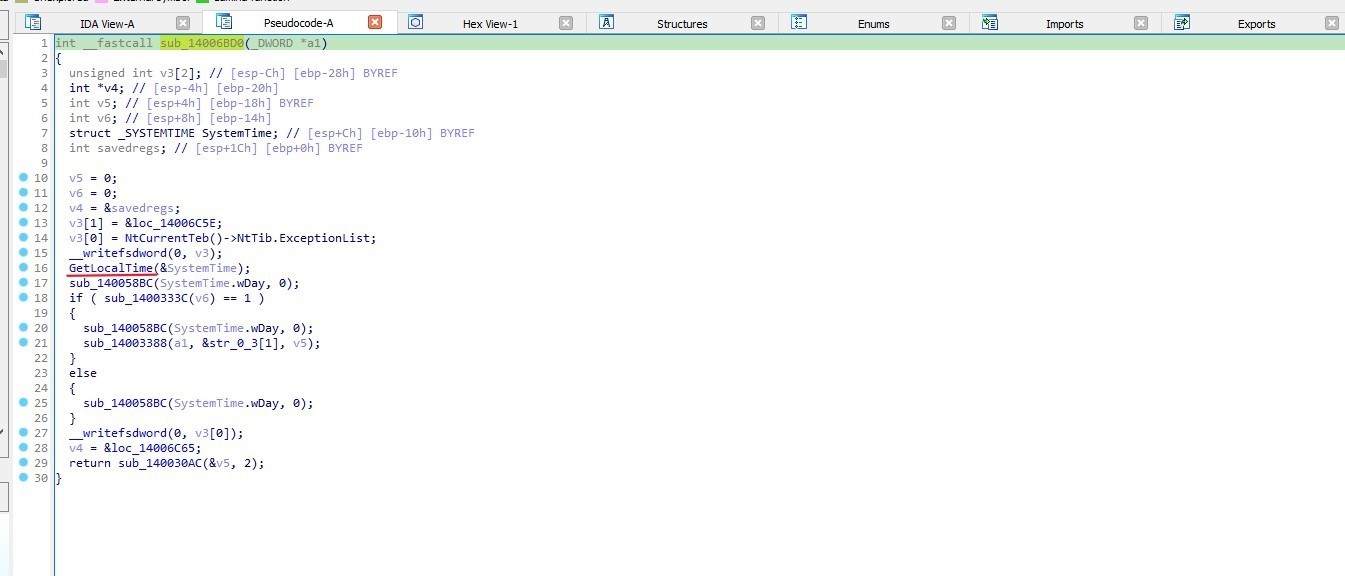

In sub_14006BD0 it fetches the current local time and stores it in the SystemTime structure.

Checking windows version

In sub_14043A04 » sub_14043944

The malware checks for Windows version by checking dwMinorVersion

if it is equal to 1 that means that the windows version is:

Windows NT 3.1 or Windows XP or Windows 7 or Windows Server 2008 R2

CyberGate creates 3rd mutex SPY_NET_RATMUTEX

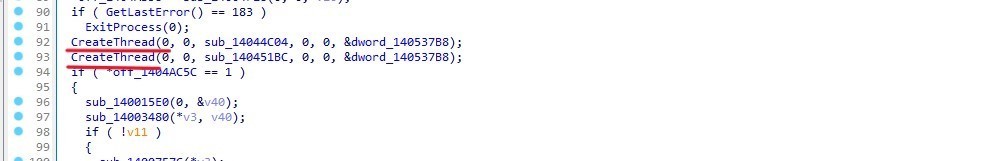

Then the code sets up two threads

After that it creates 4th mutex _x_X_PASSWORDLIST_X_x_

then executes a shell command using ShellExecuteA. If the result of ShellExecuteA is greater than 0x20 (32), the following actions are taken:

• The program sleeps for 1000 milliseconds (1 second).

• The mutex handle MutexA_0 is closed using CloseHandle.

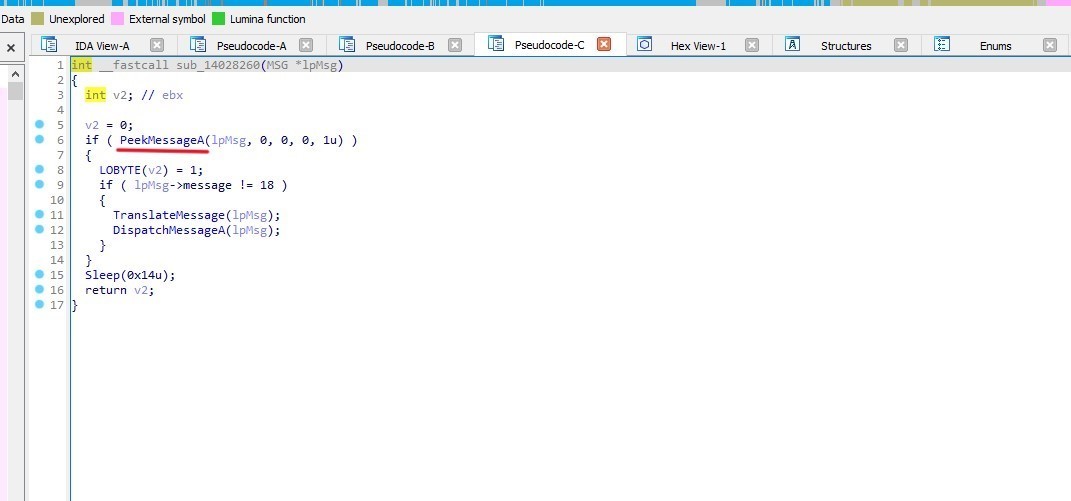

The last thing in our malware is this function

The function checks for a Windows message using PeekMessageA. If a message is found and it is not WM_QUIT, the message is translated and dispatched Then it sleeps for 20 milliseconds to avoid busy-waiting and to give other processes some CPU time.

The function returns 1 if a message was processed, otherwise it returns 0.

IOCs

MITRE ATT&CK

This blog is authored by Mostafa Farghaly(M4lcode).
